Strapping Machines

We have been providing all types of Strapping Machines for many years, and have a wealth of experience in this area. We are pleased to supply and stock the Akebono machines, suitable for a wide range of requirements.

We also provide Sales, Service and Maintenance for a range of strapping machines including TMS, StraPack, and more.

Automatic Strapping Machines

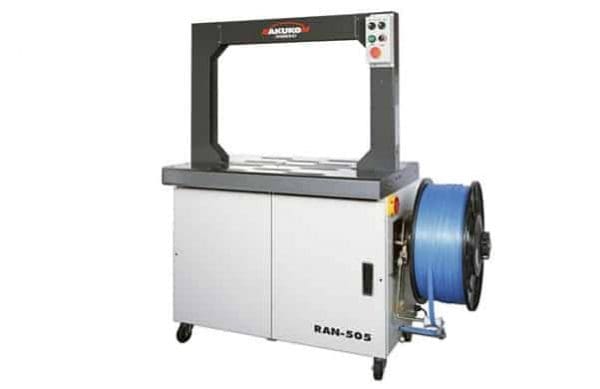

The RAN-505 has proved one of the most reliable machines available to the consumer today. It is based upon the Akebono 510 which has been in service for over 10 years. Akebono are one of the world’s leading manufacturers, with great success in the European newspaper industry in particular. This new range is set to follow with equal success.

Being fully automatic it accepts strapping from from 5mm to 12mm, and has  high-value features such as automatic feed into the Machine, and missed strap ejection as standard. Most machines are being sold set to narrower strap widths, such as 5 mm or 9 mm giving the user longer coil lengths, and less down time changing coils. At the same time it illustrates the high quality of this machine to consistently run such narrow straps. The standard arch size is 600mm wide by 500mm high; however other arch sizes are available and can be tailored to your particular requirements. Warranty is 6 months on site.

Please click below for PDF.

Akebeno RAN505 PDF

The RQ-8 is a high speed, reliable automatic polypropylene machine suitable for a range of uses.

  • Excellent speed – 1.5 seconds per cycle
  • 5mm to 15mm polypropylene strap accepted
  • Self-correcting technology in the unlikely event of a short feed
  • Easy strap loading
  • Simple controls
  • Strap size options
  • Robust construction



For further information on RQ8 please click below for PDF.

StraPack RQ8 PDFRQ-8 Auto Strapper

The RQ8X is available in Multiple arch sizes and can operate on 5mm to 15mm polypropylene strap, Therefore this machine can be tailored to meet your specific specifications.

  • High Speed – up to 55 straps/minute
  • Robust, portable design with locking castors
  • Easy strap loading
  • Ready to operate in less than 25 seconds

For further information on RQ8 please click below for PDF.

RQ8X Automatic Strapping Machine

The Strapack AQ-7M offers the following:

  • Easy Strap Loading
  • Up to 30 strap cycles/minute
  • Robust, stainless steel construction
  • Ready to operate in just 25 seconds

Features and Benefits

  • Stainless Steel Construction
  • Fully enclosed control cabinet and reinforced lower cabinet protect against moisture.
  • Side Seal Design: off, oil and debris.
  • Permanently Lubricated Mechanisms
  • Self-lubricating design reduces wear & tear and increases operational life.
  • Portable & Versatile
  • Locking castors and Adjustable table height to 3 positions (624mm, 642mm, 664mm).
  • Easy Tension Control
  • Tension is adjusted via a convenient dial. Tension arm maintains consistent tension.
  • Reliable Motor & Drive Mechanism
  • Designed with a minimum of moving parts to increase motor life and reduce maintenance requirement.

Arch Size  W 700 x H 650 mm
Width  1580 mm
Depth  610 mm
Height 1782 mm
Weight  200 kg
Table Height  624, 642, 664 mm
Minimum Package Size W 30 x H 80 mm
Maximum Package Size  W 680 x H 500 mm
Joint/Strap/Coil heat seal/polypropylene/ ID 200 x OD 450 x W 200 mm
Strap Width 5, 6, 9, 12, 15.5 mm
Max. Strap Tension  Max. 120 kg 62 mm stroke
Strapping rate  2.0 seconds
Power Supply  200, 220, 240, 380, 400, 415 V 3 Phase 50 / 60 Hz 0.85 KVA

Dimensions and specifications are subject to change without notice.

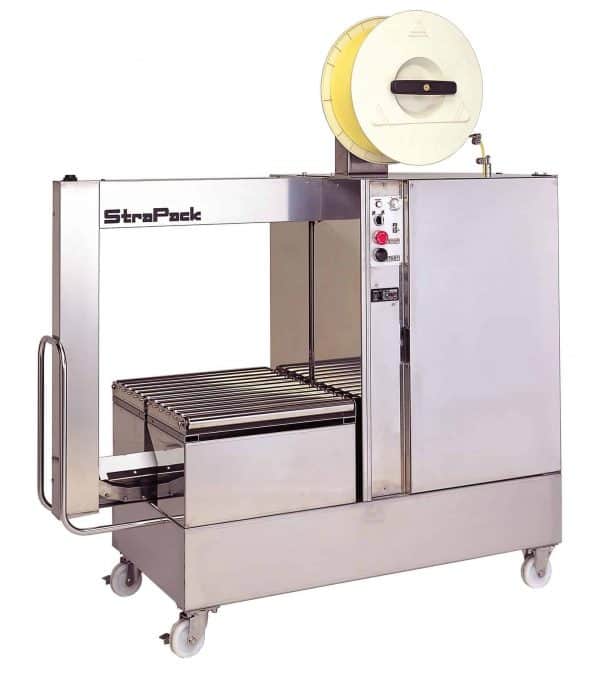

Strapack AQ-7M LR Automatic Strapping Machine

• High Speed – up to 40 straps per minute
• Stainless Steel Frame with nylon, locking castors
• Standard Arch Size 850mm x 500mm for cross strapping
• Ready to operate in less than 25 seconds
• Energy Saving Auto Shut off

Features and Benefits
Stainless Steel Construction
Specially designed for the food industry: stainless steel cabinet, arch, covers and bottom cover splash sheet. Machine can be easily moved using white nylon locking castors.

Ball Switch
Strap cycle is initiated when pack presses ball switch, enabling faster, two handed operation.

Self-Correcting Technology
If operated without a pack in place, the strap forms a small loop which is ejected from the sealing unit leaving the machine ready for the next cycle.

Variable Tension
A wide range of tension can be selected via a single dial. Tension capability up to 80kg.

Reliable Motor & Drive Mechanism
Self-lubricating design and minimum amount of moving parts increases motor life and reduces maintenance requirement.

Machine Options
Fully automated version, with conveyor belts built into table top (RQ-8 STSA 415v 3ph); Twin-arch, double-strapping machine (RQ-8 STSD); Lower working height (650mm) to integrate with existing conveyor line (RQ-8 STS LB).

Arch Size  W 850 mm x H 500 mm
Width  1452 mm
Depth   609 mm
Height 1503 mm
Weight  175 kg
Table Height  794 mm
Minimum Package Size W 80 x H 30 mm
Maximum Package Size  W 725 x H 725 mm
Joint/Strap/Coil heat seal/polypropylene/ ID 200 x OD 450 x W 200 mm
Strap Width 5, 6, 9, 12, 15.5 mm
Strap Tension  up to 784N (80kgf), 150mm stroke
Speed  1.5 sec./strap, 40 straps per min.
Power Supply  100 – 240V Single phase 50/60Hz 0.65KV
Dimensions and specifications are subject to change without notice

Strapack RQ-8SUS Automatic Strapping Machine

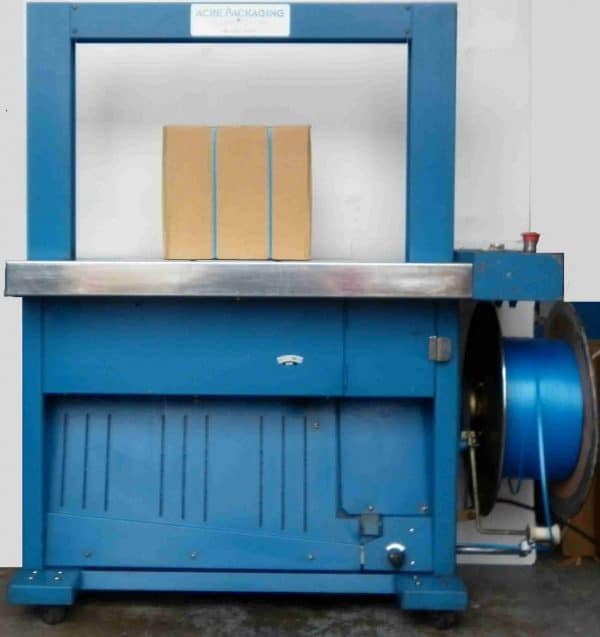

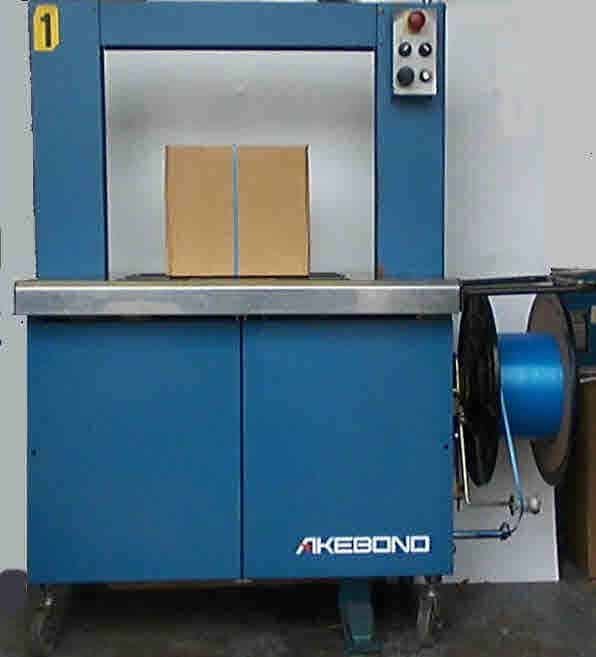

Used Strapping Machines

We also offer a range of used second hand strapping machines. Type of stock varies, so please give us a call if you have something specific in mind.

Semi Automatic Strapping Machines

TMS 300 (Transpak Tp-202)

These are reliable and strong machines which are very easy to operate. Simply feed the strapping around the package and into the strap guide and it will automatically tension and weld the strap. The machines will run the standard 7mm to 12mm polypropylene strap and are easily adjustable.

We offer full after sales technical support together with a regular servicing contract (if required).

  • Simple Control Panel
  • Enclosed Cabinet Design Allows easy movement and installation
  • Only requires a 13 amp socket.
  • Easy Operation Minimum training required
  • External Tension Control

Specifications:

  • Dimensions: 920mm x 595mm x 785mm (h)
  • Tension 15 to 45kgs
  • Strap Width 7mm to 12mm
  • Strapping Speed 2.5 seconds / cycle (60Hz)
  • Power Supply 230c / 50Hz
  • Power Consumption 0.3kw
  • Warranty Meeting CE regulations this Strapping Machine is backed by a comprehensive warranty which includes parts and labour.

For further information on TMS300 please click below for PDF.

TMS300 Semi-Auto Strap Machine Open

StraPack i-10 Semi Automatic Strapping Machine.

The StraPack i-10 is one of the latest StraPack models, and is a great machine for smaller companies and occasional use.  It is a compact unit offering reliability, ease of operation and low maintenance costs.

Features
  • Adjustable Legs (table height adjustable from 755 – 905mm).
  • Quick Start Up (just 45 seconds).
  • Runs strap from 5mm – 15.5mm without change parts.
  • Soft Tension option for delicate packs.
  • Seal Time Extension for springy packs.
  • Easy Maintenance



This newer version is 22% quieter (only 67 dB(, 25% lighter (only 45kg), more energy efficient (only 0.25Kw) and has 30% less moving parts than before.

Samuel D-53M2

• Robust, stainless steel construction
• Top mounted strap dispenser
• Portable design (locking castors)
• Ready to operate in 45 seconds

Features and Benefits

The Stainless Steel Construction is deal for moisture-laden meat, poultry and seafood processing environments. It has a side sealing design and a fully enclosed cabinet with sealed bearings. The portable design ensures that the machine can easily be moved to different locations using locking castors.

Two separate height positions available on the table.

  • Width  1078 mm,Depth  620 mm,Height 1493 mm
  • Weight  Approx. 75 kg
  • Table Height  642 or 732 mm
  • Minimum Package Size W 30 x H 100 mm
  • Maximum Package Weight  Approx. 30 kg
  • Joint/Strap/Coil Heat seal / polypropylene ID 200 x OD 450 x W 200 mm
  • Strap Width 5, 6, 9, 12, 15.5 mm
  • Strap Tension  Approx. 400N (40kgf)
  • Power Supply  110, 220, 240 V 1 Phase 50/60Hz 0.4 KVA

Dimensions and specifications are subject to change without notice.

WE also offer a range of used strapping machines. Please see the link or call for details
